The Pilatus PC-24 is a twin-engine business jet

developed by Pilatus Aircraft of Switzerland.

Pilatus PC-24

The Super Versatile Jet

A Class of its own.
Every crystal found in the mountains of Switzerland is entirely unique. Just as unique is the Pilatus PC-24, the only aircraft combining the versatility of a turboprop with the cabin size of a medium-light jet, and the performance of a light jet. It’s a plane that simply doesn’t fit into any of the existing business jet categories.

That’s why they had to create a new one: the Super Versatile Jet (SVJ) category. The Pilatus PC-24 has been engineered to be “off-road“ compatible from the beginning. Its outstanding short-field performance – even on unpaved runways – opens up an incredible level of mobility. With the Pilatus PC-24, you will have access to almost 100% more airports around the world.

That means you can fly closer to your final destination than with any other business jet. You‘ll be able to use smaller airports and avoid massive administrative procedures, and reduce ground transfer time to an absolute minimum.

PlaneSense will introduce a new shared jet ownership program when it takes delivery of the first Pilatus Pilatus PC-24 in 2017.

The company has been a long term user of the Pilatus PC-12 turboprop.

The PlaneSense program is scheduled to receive the first Pilatus PC-24 production model in late 2017, and it has already signed for five more to be acquired thereafter.

“Offering a comprehensive fractional jet program with choices of aircraft type to ‘match the mission’ is a natural evolution for the PlaneSense program, and more importantly, it is an expansion that our clients enthusiastically support.“

George Antoniadis, president and CEO of PlaneSense said: “Offering a comprehensive fractional jet program with choices of aircraft type to ‘match the mission’ is a natural evolution for the PlaneSense program, and more importantly, it is an expansion that our clients enthusiastically support.”

“We are pleased to build upon our longstanding relationship with Pilatus by adding jets to our fleet, and we highly anticipate the honor of acquiring the first Pilatus PC-24 in the world,” added Antoniadis.

Pilatus PC-24 “We are very proud to showcase the Pilatus PC-24 mock-up at our Portsmouth headquarters,” Antoniadis said. “This privilege has afforded us with the opportunity to share the aircraft specifications, features, benefits, and our jet program details with our current clients in a very unique manner.”



Every crystal found in the mountains of Switzerland is entirely unique. Just as unique is the Pilatus PC 24, the only aircraft combining the versatility of a turboprop with the cabin size of a medium-light jet, and the performance of a light jet.

It’s a plane that simply doesn’t fit into any of the existing business jet categories.

The Pilatus PC 24 has been engineered to be “off-road“ compatible from the beginning. Its outstanding short-field performance – even on unpaved runways – opens up an incredible level of mobility. With the Pilatus PC-24, you will have access to almost 100% more airports around the world.

That means you can fly closer to your final destination than with any other business jet. You‘ll be able to use smaller airports and avoid massive administrative procedures, and reduce ground transfer time to an absolute minimum.


Pilatus PC-24 –Performance & Specs

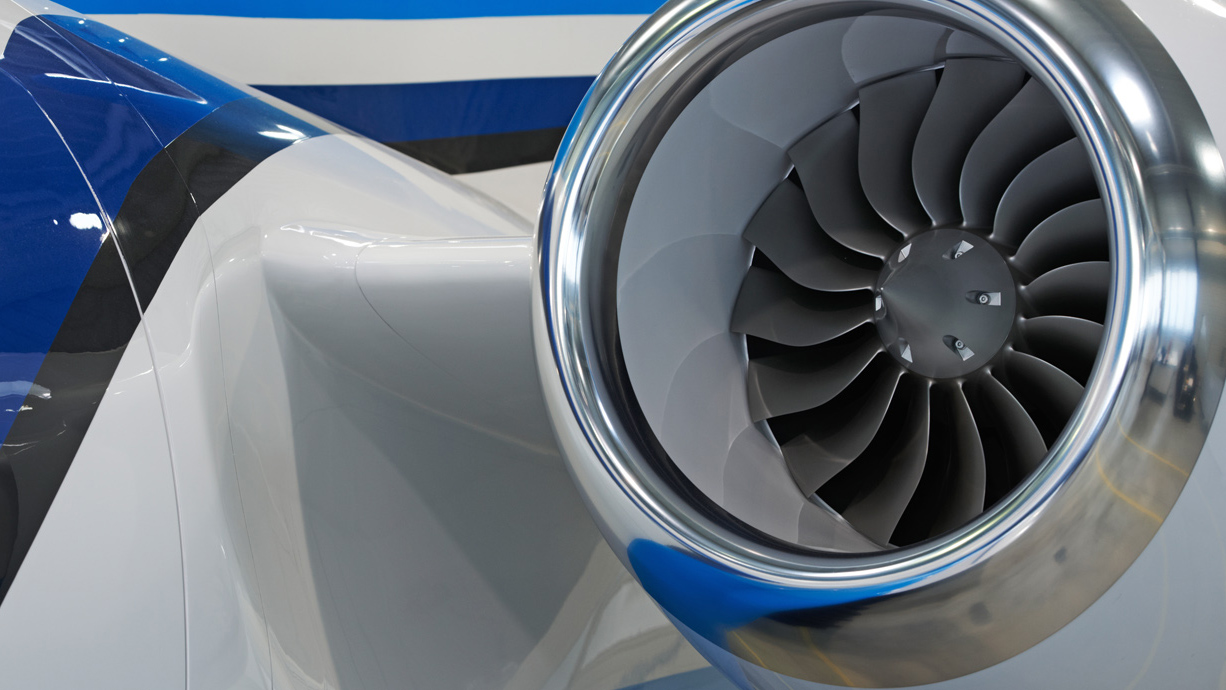

At Pilatus, their legacy of innovative and efficient technology is driven by the world around. To power the Pilatus PC-24, they chose the Williams International FJ44-4A, a world-renowned power unit. Itdelivers ample power to support the Pilatus PC-24’s excellent field performance and enables a direct climb to the Pilatus PC-24’s operational ceiling.
But they wouldn’t be Pilatus if we simply settled there – they wanted to go further. Here’s another world premiere: the Pilatus PC-24’s unique Quiet Power Mode™ provides quiet, economical energy to power electrical systems


Performance

– Including heating and air-conditioning
– independent of any source of ground power.
These innovations offer more operational flexibility and higher fuel efficiency. Or to put it simply: maximum versatility.

 Max cruise speed (FL300) 425 k TAS (489 mph) 787 km/h TAS
 Range 4 Pax 1 1,950 nm / 2,244 sm 3,610 km
 Range 6 Pax 2 1,800 nm / 2,071 sm 3,330 km
 Max certified altitude 45,000 ft 13,716 m
 Cabin altitude at 45,000 ft 8,000 ft 2,438 m
 Takeoff balanced field length 3 2,690 ft 820 m
 Takeoff balanced field length (hot & high) 4 4,430 ft 1,350 m
 Rate of climb (MTOW, Sea Level) 4,075 ft / min     1,242 m / min
 Time to climb sea level to FL450 (direct climb) 30 min 30 min
 Landing distance over 50 ft obstacle 5 2,525 ft 770 m
 Stall speed (MLW, ISA, Sea Level) 81 k IAS (93 mph) 150 km/h IAS

1 (800lb payload, NBAA IFR reserve, LRC, Single Pilot OPS)
2 (1200lb payload, NBAA IFR reserve, LRC, Single Pilot OPS)
3 (MTOW, ISA, sea level, dry paved runway)
4 (MTOW, ISA +20°C, 5000ft, dry paved runway)
5 (MLW, ISA, sea level, dry paved runway)
Weights

 Max ramp weight 17,750 lbs  8,050 kg
 Max takeoff weight 17,650 lbs  8,005 kg
 Max landing weight 16,250 lbs  7,370 kg
 Max zero fuel weight 13,450 lbs  6,100 kg
 Usable fuel (888.5 U.S. gal) 5,965 lbs  2,705 kg
 Max payload 2,500 lbs  1,135 kg
 Max payload with full fuel 915 lbs  415 kg




Pilatus PC-24 – Interior


Like a Penthouse. On the 5000th Floor.

Thirteen extra large cabin windows flood the interior of the Pilatus PC-24 with bright, natural light. The generously sized cabin, with its continuous flat floor, allows for an exceptional amount of headroom for both passengers and crew. It’s not first class traveling – it’s Crystal Class.

Only the finest-quality materials have been used to create an interior that fits in perfectly with the latest standards of comfort and functionality.

Every component is chosen to enhance the passenger experience: soft leathers and rare hardwood cabinetry full of exquisite details create a bespoke interior that reflects the meticulous purpose of the aircraft.

The interior of the Pilatus PC-24 has been designed from the outset for quick and easy reconfiguration.

Each passenger seat features quick-change capability enabling its addition or removal in just a few minutes.

Thirteen extra large cabin windows flood the interior of the Pilatus PC-24 with bright, natural light.

The generously sized cabin, with its continuous flat floor, allows for an exceptional amount of headroom for both passengers and crew. It’s not first class traveling – it’s Crystal Class.


Pilatus PC 24 – Characteristics


Pilatus PC 24 – Characteristics

  • Passenger Capacity: 6
  • Cabin volume 501 cu ft 14.20 cu m
  • Cabin length 23 ft 00 in 7.01 m
  • Cabin width 5 ft 7 in 1.69 m
  • Cabin height 5 ft 1 in 1.55 m
  • Cabin floor width 3 ft 10 in 1.16 m
  • Passenger door 53 in x 24 in 1.34 m x 0.60 m
  • Cargo door 51 in x 49 in 1.30 m x 1.25 m
  • Baggage compartment 51 cu ft 1.40 cu m




Pilatus PC 24 – Cargo


Pilatus PC 24 – CargoA jet so private, even the baggage has its own door.

Every iconic product incorporates at least one hallmark feature that dramatically differentiates it from the competition in the Pilatus PC-24.

Introducing the first business jet with a standard pallet-sized cargo door. Its dimensions are simply outstanding, and its advantages are equally impressive. It’s how a business jet becomes a Super Versatile Jet.

Whether you’re carrying spare parts or baggage for all your passengers, loading even the bulkiest of items has never been easier. All your valuable belongings will be carried in a heated and fully pressurized cabin section, which is accessible at any time during the flight. Some of the Pilatus PC-12 customers have been known to take their motorbike with them. Now they can do that at jet speed.
